TP LINK AC1200-EAP235-WALL WIRELESS MU-MIMMO

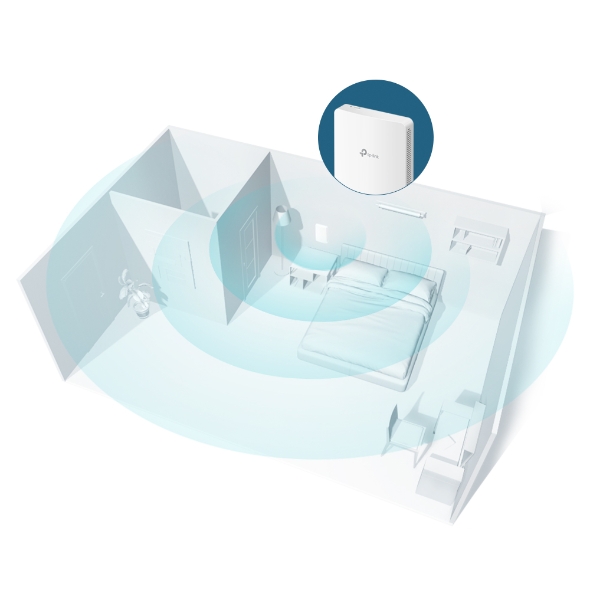

The TP-Link Omada EAP235-Wall combines in-room Wi-Fi and wired Ethernet in a compact wall-plate access point. It suits hotel rooms, offices and accommodation where each room needs a local wireless connection and ports for desk devices. One Gigabit uplink connects to the network and supplies PoE power; three Gigabit downlinks serve wired devices. One downlink supports PoE pass-through when the access point receives the required 802.3at PoE+ input. Omada management brings compatible access points into a central management system. Check the wall box, controller compatibility, hardware revision and available PoE budget before purchase. A suitable PoE source and network connection are required; wireless rates are theoretical.

Bands

2.4 GHz and 5 GHz

Model

EAP235-Wall

Ethernet

4 x Gigabit RJ45 (1 uplink, 3 downlinks)

Mounting

Compatible US, EU or 86 mm wall box

Management

Omada SDN

Power input

802.3af or 802.3at PoE

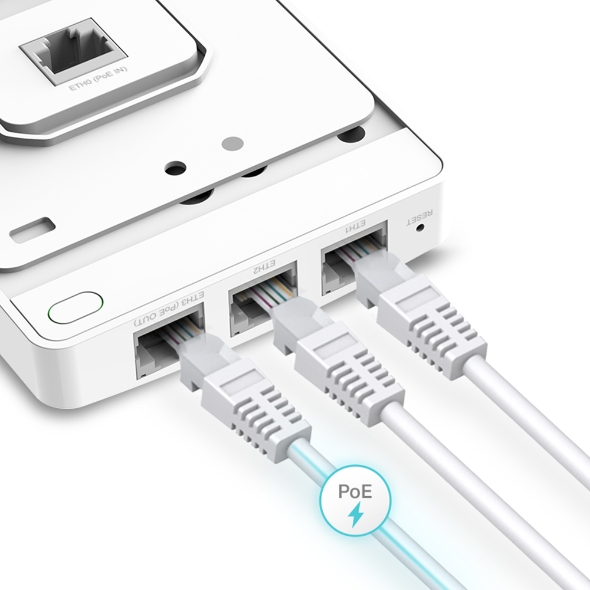

PoE pass-through

Requires 802.3at input; up to 13 W output

Wireless standard

802.11ac / Wi-Fi 5

Maximum radio rates

300 Mbps + 867 Mbps

• Dual-band AC1200 Wi-Fi
• One Gigabit uplink and three downlinks
• PoE pass-through on one downlink
• 802.3af/at PoE input

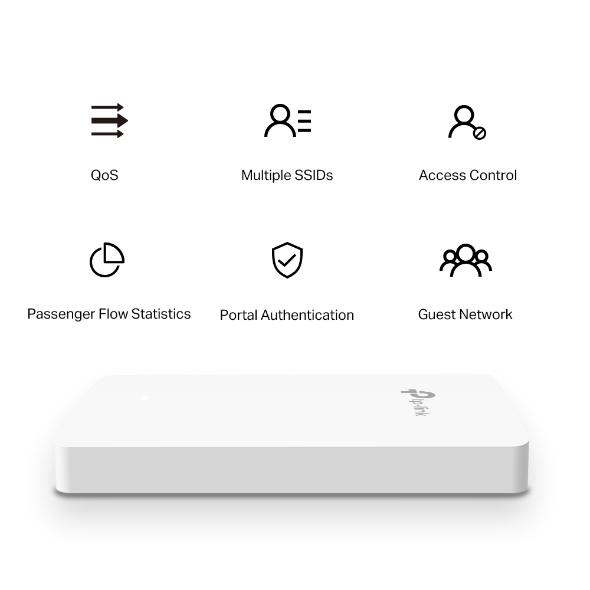

• Omada central management
• Wall-plate installation
• Brand: TP-Link Omada
• Type: Wall-Plate Wi-Fi Access Point
• Environment: Indoor / Wall Plate
