Ubiquiti UniFi U7 Outdoor WiFi 7 Access Point

Extend managed WiFi into courtyards, outdoor venues and business grounds with the Ubiquiti UniFi U7 Outdoor. Its directional antenna focuses coverage, while the included external omnidirectional antennas offer an alternative for coverage around the access point. The dual-radio design operates on 2.4 GHz and 5 GHz with four spatial streams. A 2.5 GbE Ethernet uplink and PoE+ power support a tidy single-cable installation. The IPX6 enclosure supports outdoor use, with wall and pole mounting options. Coverage and client capacity depend on placement, interference and the surrounding environment. Use suitable outdoor cabling and surge protection. A compatible PoE+ power source and UniFi management are required; confirm the supplied power accessories before ordering.

Mounting

Wall or pole

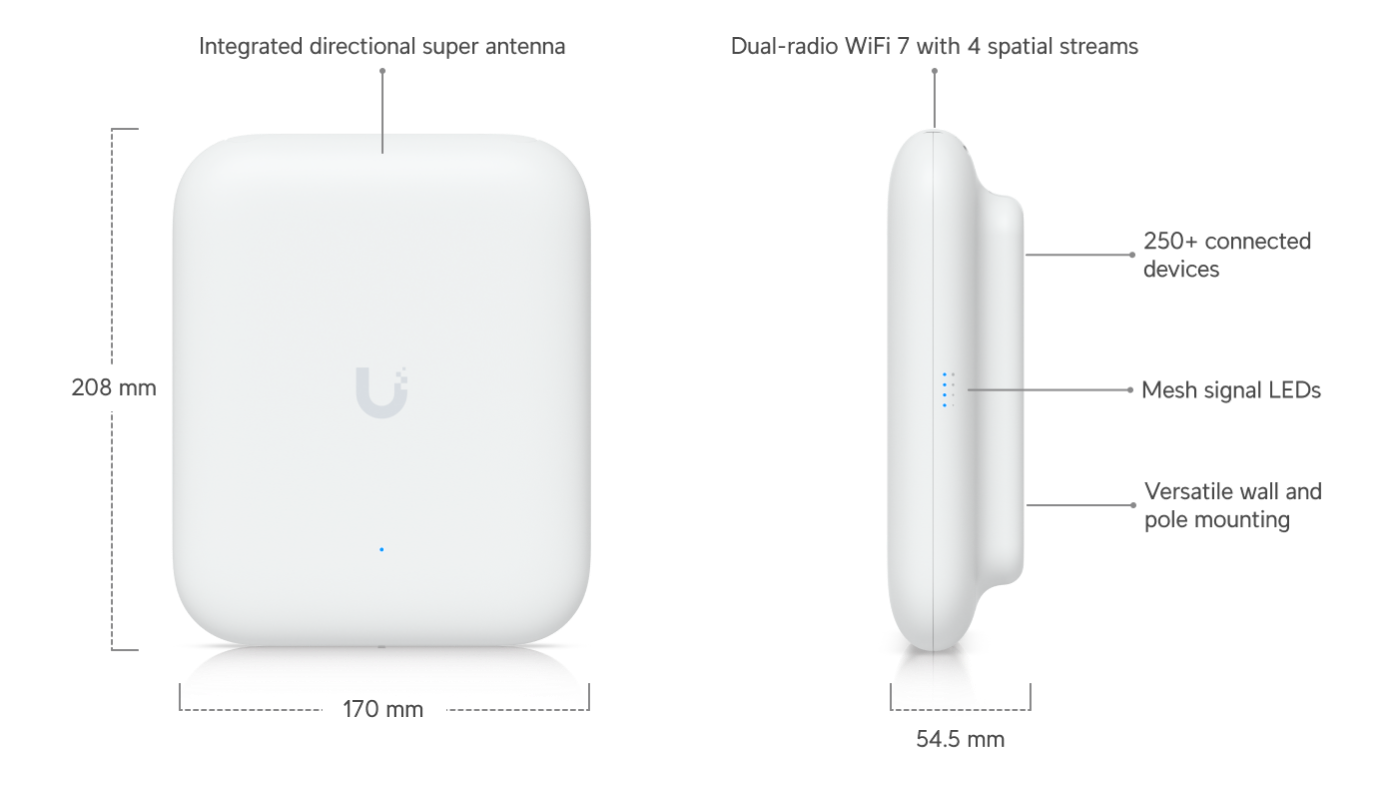

Dimensions

170 × 208 × 54.5 mm

Radio bands

2.4 GHz and 5 GHz

Power method

PoE+

Antenna options

Integrated directional; included external omnidirectional

Client capacity

250+ (deployment dependent)

Ethernet uplink

2.5 GbE RJ45

Spatial streams

4

Wireless standard

WiFi 7

Installation guide

https://dl.ui.com/qig/u7-outdoor

Manufacturer model

U7-Outdoor

Weather resistance

IPX6

TjTech product code

UAP-U7-OUTDOOR

Directional coverage

Up to 465 m² in open space

Omnidirectional coverage

Up to 160 m²

Manufacturer product page

https://store.ui.com/us/en/products/u7-outdoor

• Dual-band WiFi 7 on 2.4 GHz and 5 GHz
• Four spatial streams
• Integrated directional antenna and included external omni antennas

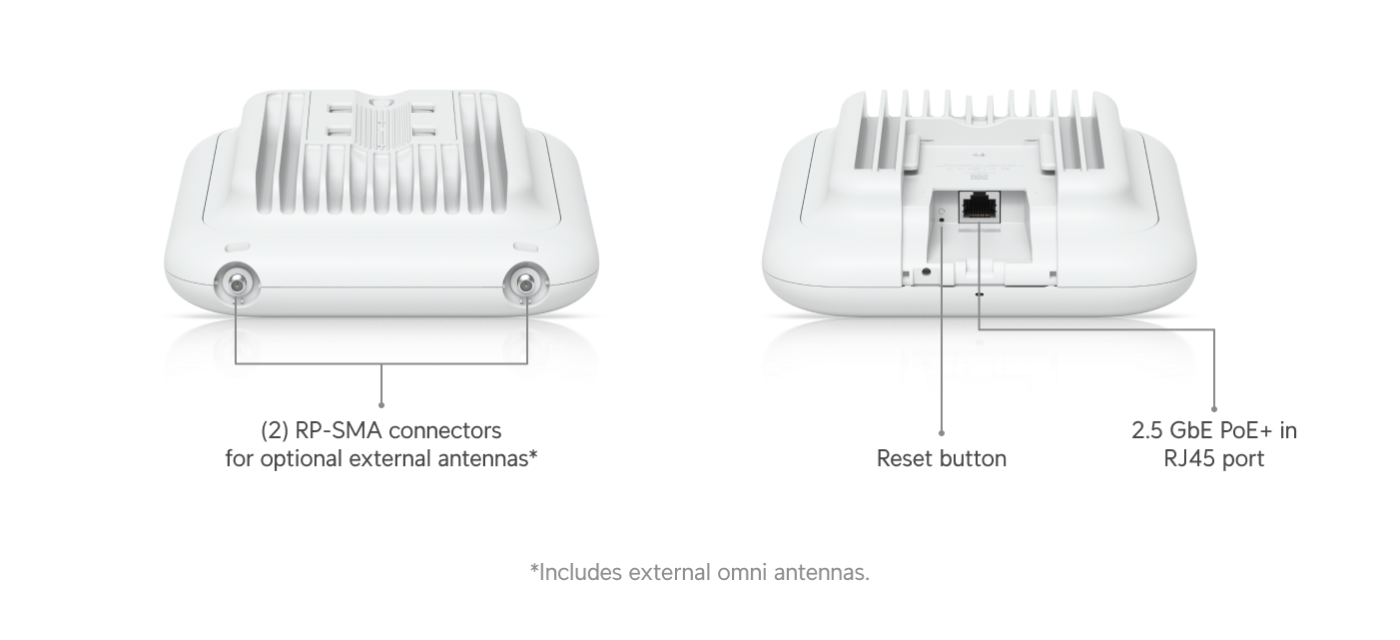

• 2.5 GbE Ethernet uplink with PoE+ power
• IPX6 outdoor weather resistance

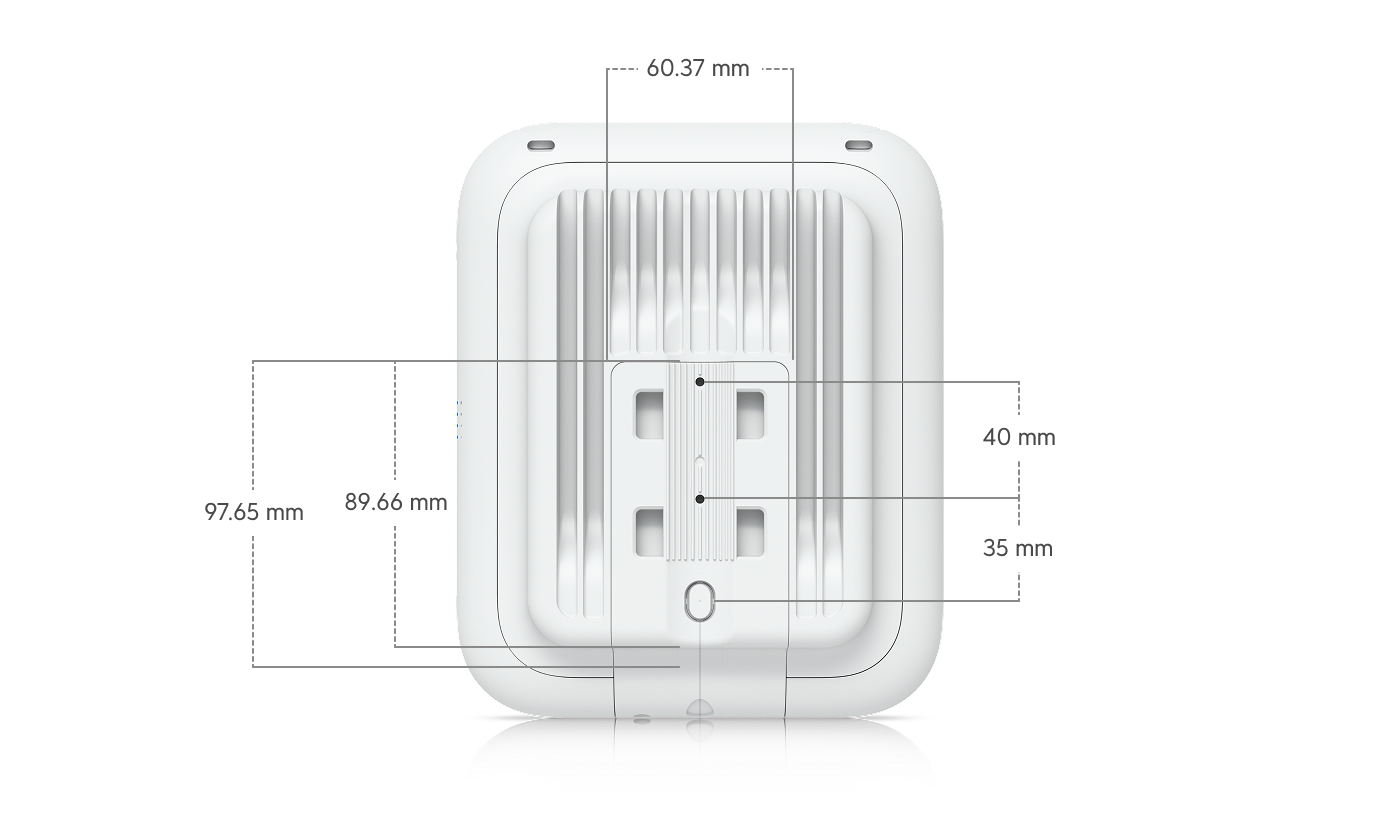

• Wall and pole mounting
• Brand: Ubiquiti
• Type: Outdoor WiFi 7 Access Point
• Environment: Outdoor
